AW25 All Weather Full Range Outdoor Loudspeaker
Audiofrog’s AW25 all-weather outdoor loudspeakers are designed to provide the accurate and detailed sound you’ve come to expect from a new and leading brand of performance-built application-specific loudspeakers.
Designed to be used indoors or outdoors, the adjustable mounting bracket positions the speaker near a wall or in a corner, dramatically reinforcing the bass from the rear-mounted passive radiator. The AW25 is an excellent solution for outdoor fill speakers for commercial venues or for rocking your backyard patio or shop.
All weather construction, waterproof polypropylene woofer cones and water resistant tweeter diaphragms along with a sealed and injection molded polymer enclosure ensure your AW25 speakers will provide enjoyment for many years.
The AW25 features a 5-1/4” woofer, 1” tweeter and passive radiator in a rugged and durable injection molded polymer enclosure suitable for permanent installation indoors or outdoors. Typical installation against a wall or ceiling provides reinforcement of the output of the passive radiator for great bass performance sure to provide a “Wow!”
A second order integrated passive crossover at 1.7 kHz provides a smooth transition between midrange and tweeter and a tweeter protection circuit prevents the tweeter from being overdriven.
AW25 speakers include an adjustable mounting bracket and a connector with a pass-thorough connection to make wiring a system with multiple speakers simple and neat.
Woofer:
5-1/4” Waterproof polypropylene cone and dustcap
1” copper voice coil
Tweeter:
1” water resistant treated textile dome
Passive acoustic equalizer
Crossover:
12 dB/octave @ 1.7 kHz with tweeter protection and impedance compensation
Performance:
Power Handling (Continuous Average): 150 Watts
Power Handling (Music): 300 Watts

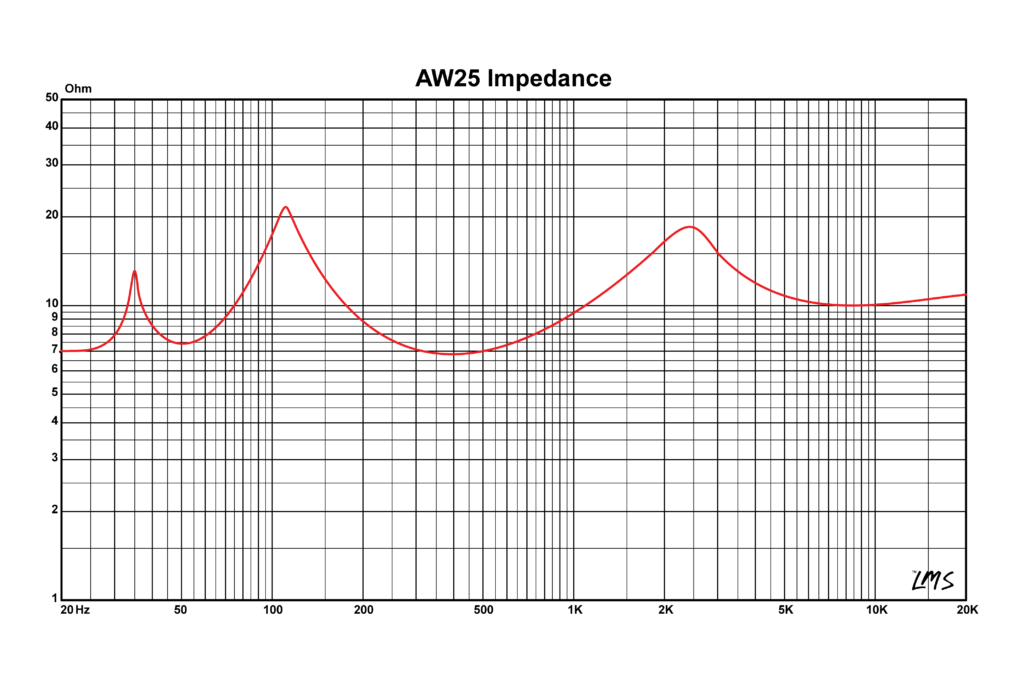

Nominal Impedance: 8 Ω
Sensitivity (2.83 V / 1 M): 89 dB

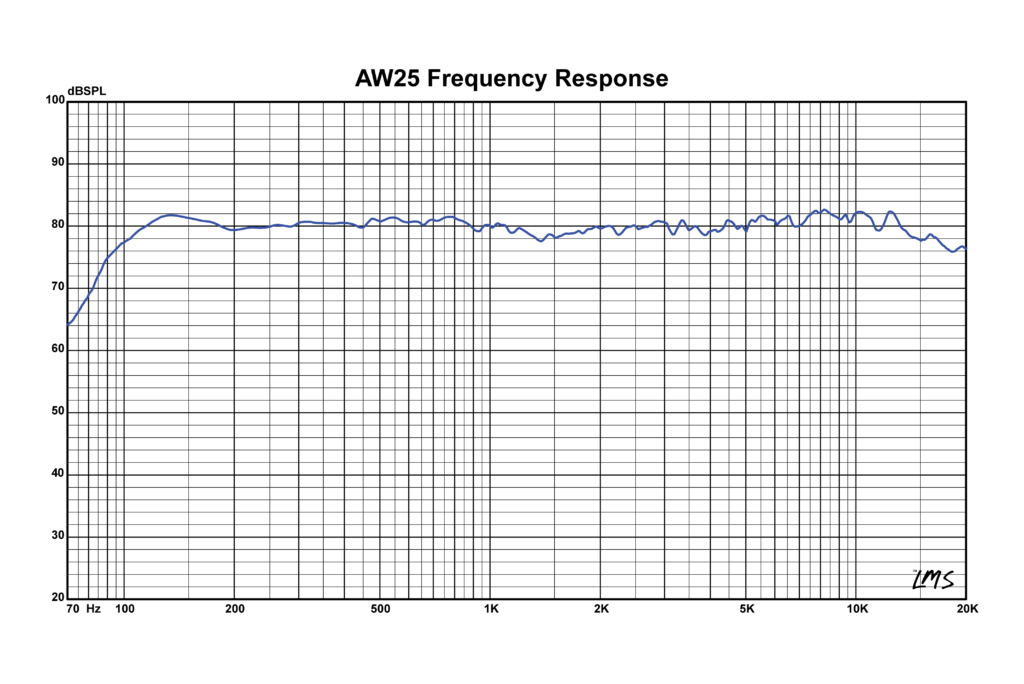

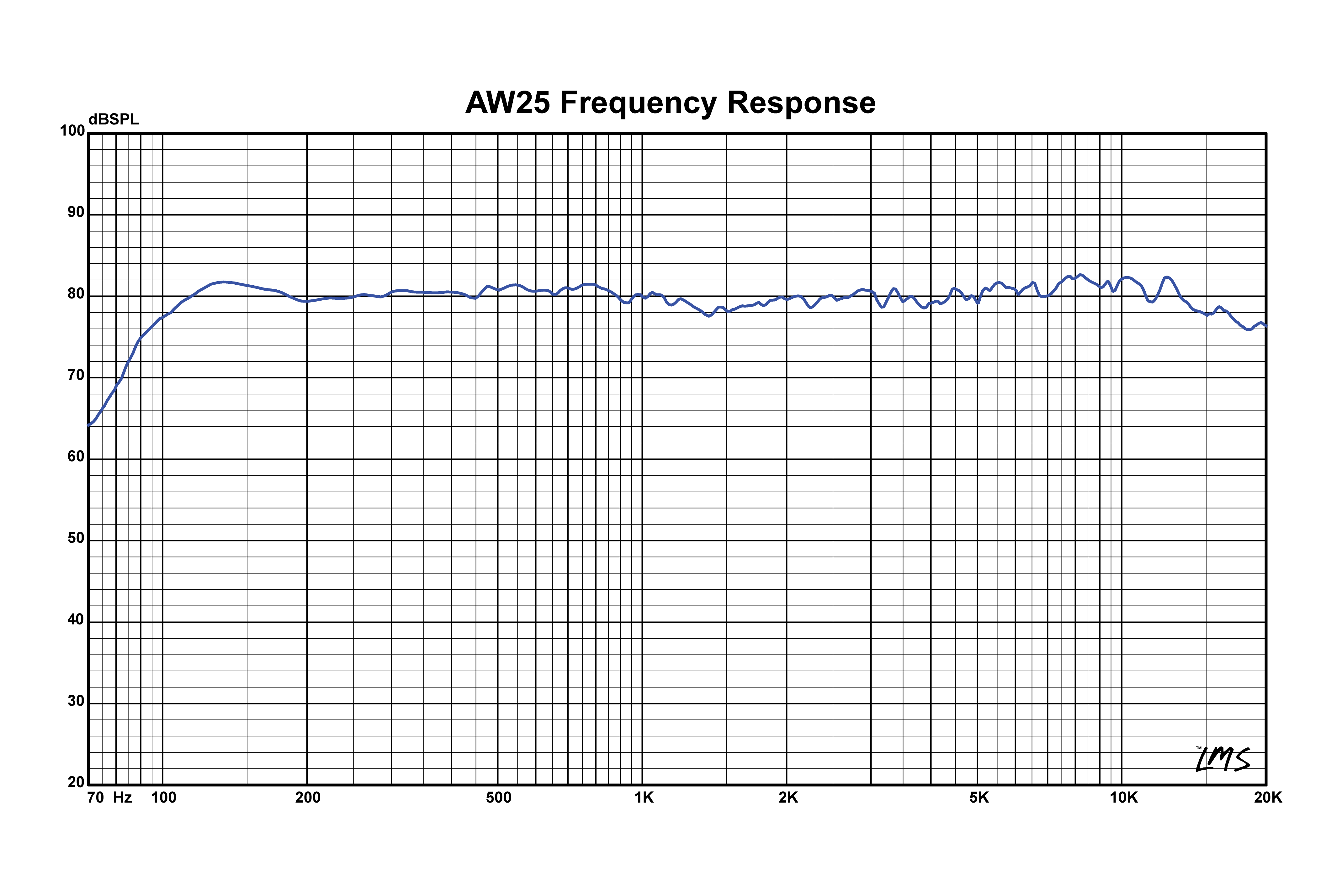

Frequency Response (-3 dB): 70 Hz – 20 kHz
Recommended Amplifier RMS Power: 25-150 Watts
