G12D2 12″ (300MM) PERFORMANCE GRADE AUTOMOTIVE SUBWOOFER
Designed for great-sounding low frequency reproduction with amplifier power up to 600 watts RMS, the G-Series subwoofers have been engineered to provide the same frequency response in the same sealed and vented enclosures as the GS and GB Series subwoofers.
G Series subs feature double stacked ferrite magnets and an extended polepiece for magnetic symmetry above and below the gap.
They also feature the same rigid treated paper cone and rubber surround as the GS and GB Series subs. Gold-plated 5-way binding posts make connection simple. The G12D2 includes dual 2-ohm voice coils for system design flexibility for plans that include one or multiple subs.
- Treated Paper Cone
- 2” (50 mm) Voice Coil on Fiberglass Former
- Dual 2 Ω Voice Coils
- Dual Gold-Plated 5-Way Binding Post Connections
- Extended Pole Piece
- Flared Pole Piece Vent
- Dual Ferrite Magnets
- Extended Back Plate
- Vented Stamped Steel Basket
- Nitrile Butadiene Rubber Surround
Specifications:
- Nominal Impedance: 1 Ω or 4 Ω
- RMS Power Handling: 250 W RMS
- Peak Power Handling: 750 W
- Frequency Response (-3 dB): 22 Hz – 160 Hz
- Sensitivity (2.83V / 1M): 94 dB
- Recommended Amplifier RMS Power Range: 100 W – 600 W
Dimensions:
Enclosure Performance(See Owner’s Manual for Details):
Sealed Enclosure Volume: 28.8 liters (1 ft³)

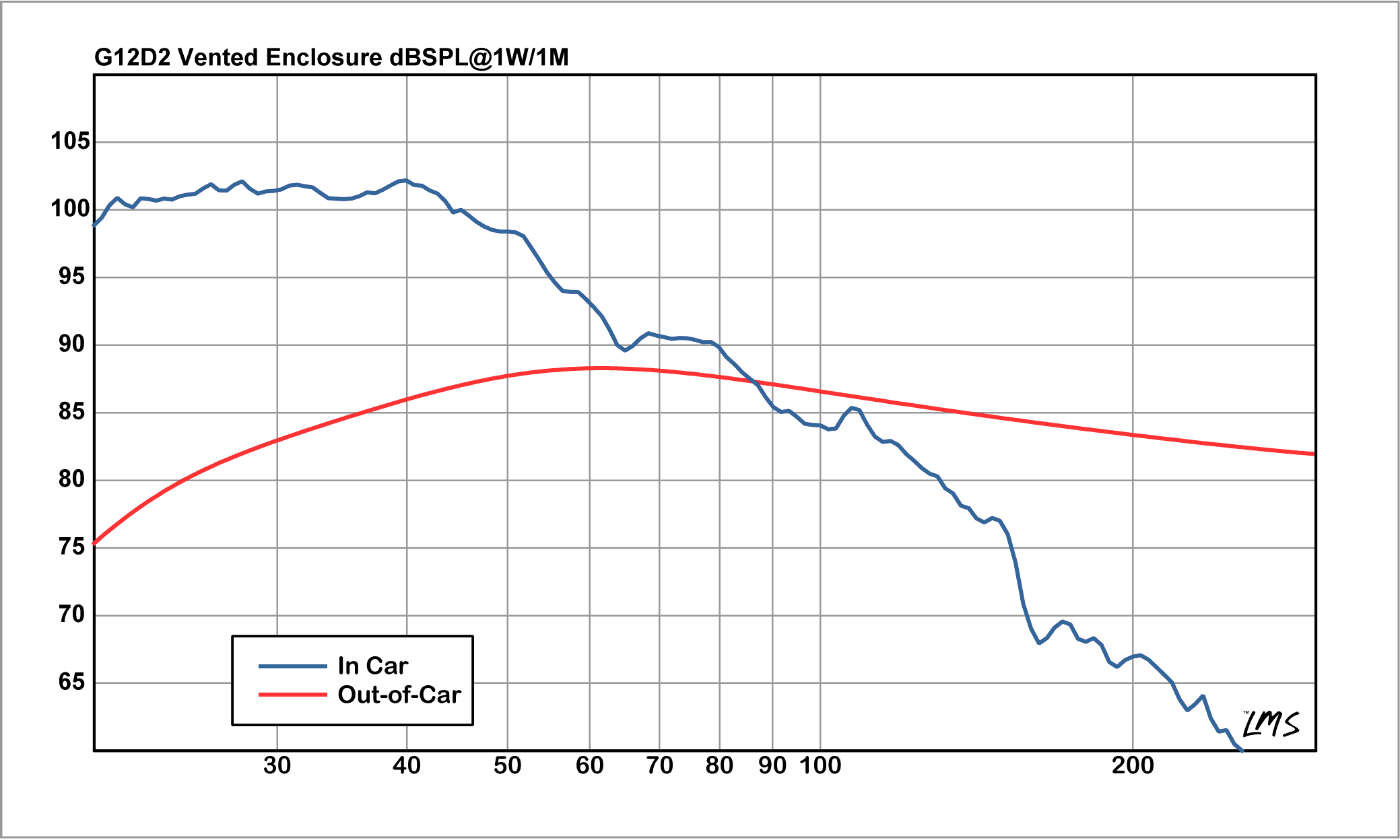

Vented Enclosure Volume and Tuning: 42.5 liters (1.5 ft³), 33 Hz:
Thiele & Small Parameters:
- Revc: 1 Ω or 4 Ω
- Levc @1 kHz: 0.60 mH (1 Ω configuration)
- Sd: 510.7 cm²
- Mmd: 152 g
- Mms: 158 g
- Cms: 154 µM/N
- Vas: 57 liters
- Fs: 32.2 Hz
- BL: 7.94 TM (1 Ω configuration)
- Qms: 6.94
- Qes: 0.52
- Qts: 0.48
- Xmax (1-way linear): 13.6 mm (9/16”)
- Basket Displacement: 3.14 liters (0.11 ft³)
