GB10OE-0003: 1″ (25 MM) BMW AUDIOPHILE GRADE AUTOMOTIVE TWEETER
Audiofrog OE style tweeters provide the same performance as the aftermarket versions, but the aftermarket housings have been replaced by a custom mount designed to fit directly in the location provided by the factory. The Audiofrog GB10OE-0003 is designed to fit BMW models with tweeters in the sail panel, but may also fit other models. Please check the GB10OE-0003 installation manual for a detailed drawing with dimensions.
In the box:

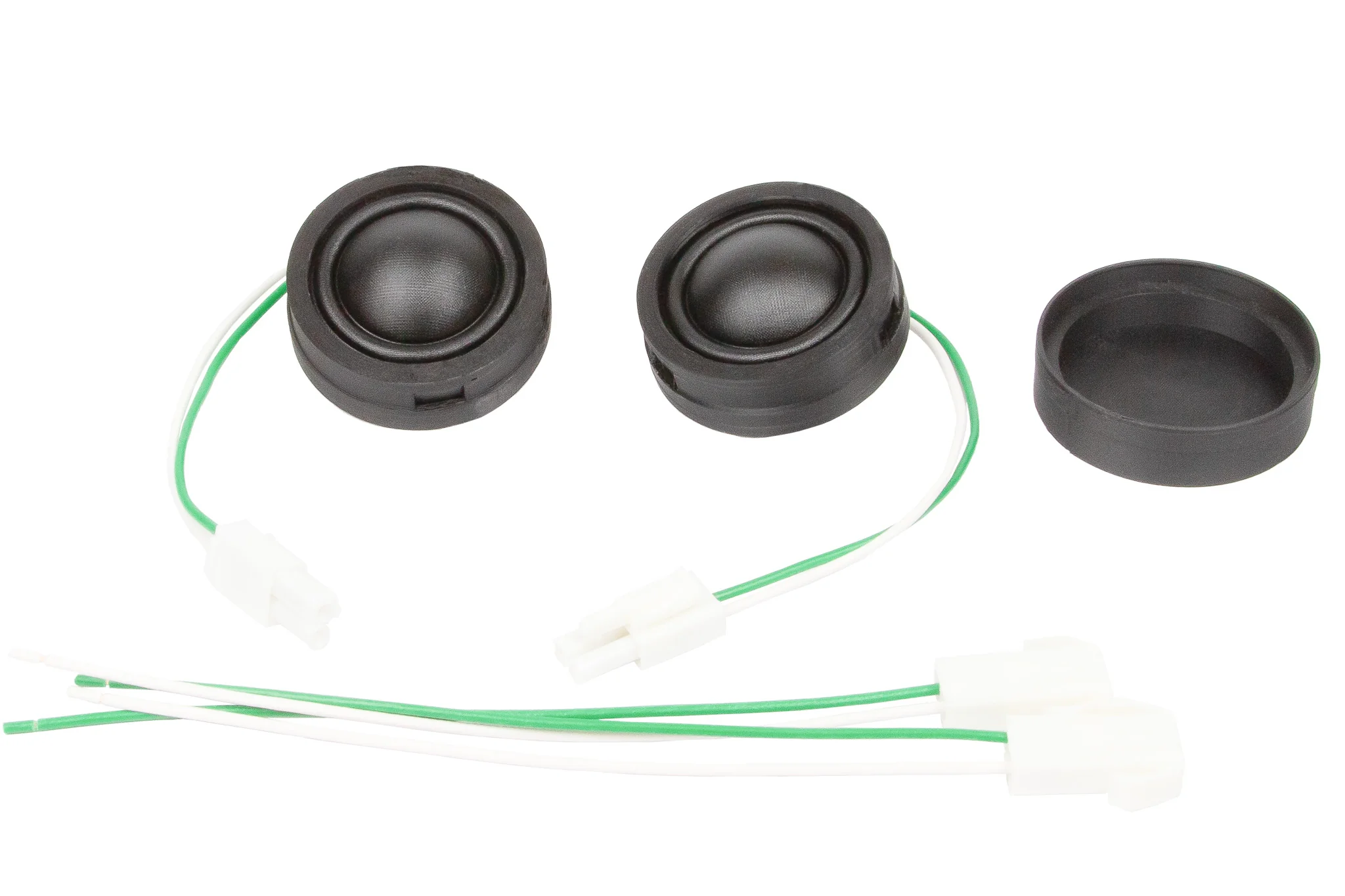

One pair GB10OE-0003 tweeters
One pair connecting cables
Disclaimer:
Please check the drawings in the manual and pictures here against your original tweeter to better ensure the Audiofrog tweeter will fit. We reverse engineer the original tweeter when we design the Audiofrog version and cannot verify every make, model and year that this tweeter may fit. You can download the instruction manual below.
- 1” (25 mm) Sealed Polyester Diaphragm
- 1” (25 mm) Voice Coil
- Neodymium Motor
- Copper Inductance- and Distortion-Reducing Pole Piece Cap
- Removable and Paintable Grill
Specifications:
- Nominal Impedance: 4 Ω
- RMS Power Handling: 100 W (with recommended crossover)
- Peak Power Handling: 300 W (with recommended crossover)
- Frequency Response (-3 dB): 1.8 kHz – 24 kHz
- Sensitivity (2.83V / 1M): 90 dB
- Recommended Amplifier RMS Power Range: 20 W – 100 W
- Recommended High Pass Filter Frequency and Slope: ≥ 2.5 kHz, ≥ 12 dB/oct
Frequency Response Graph:
