Overview

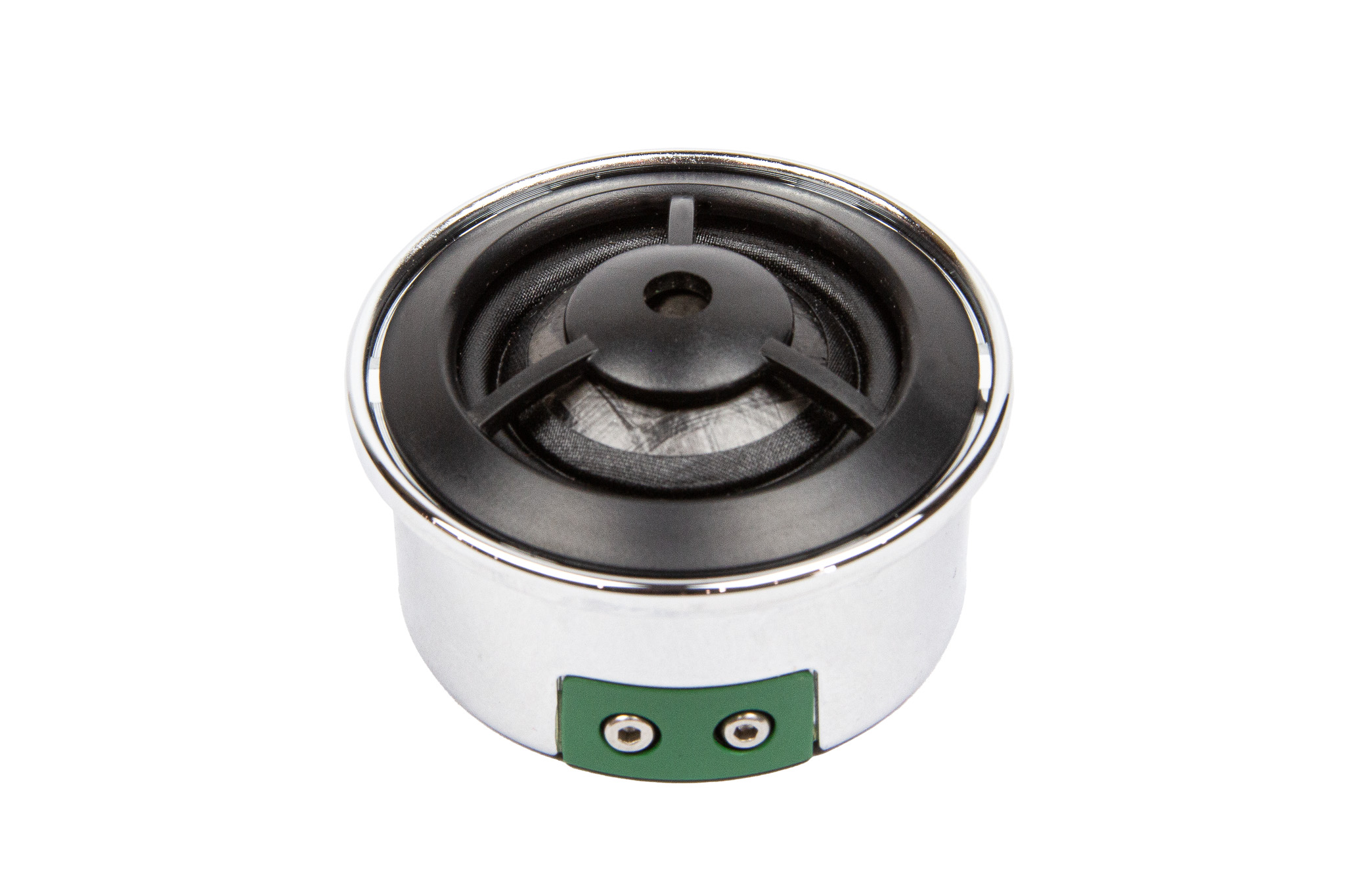

Designed for installation in factory or custom locations, the GB10CF 1” tweeter with acoustic lens provides ultra-low distortion, audiophile-grade performance with flat and extended high frequency response. The new carbon fiber dome allows a high pass crossover frequency of 2kHz when a Linkwitz Riley 24dB/oct filter is used. The unique installation kit makes custom installation a breeze whether you choose flush mount or something more custom.
Features

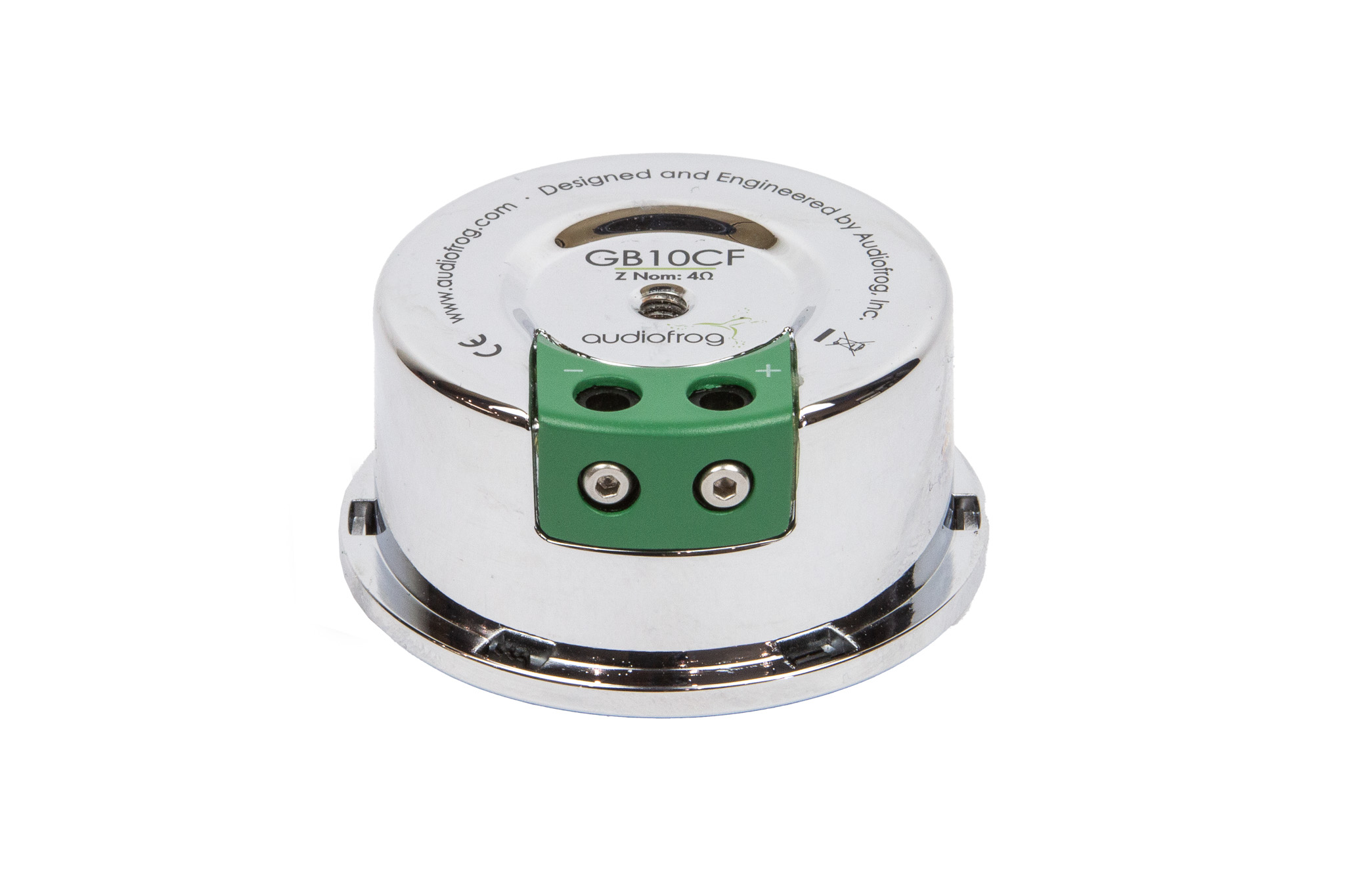

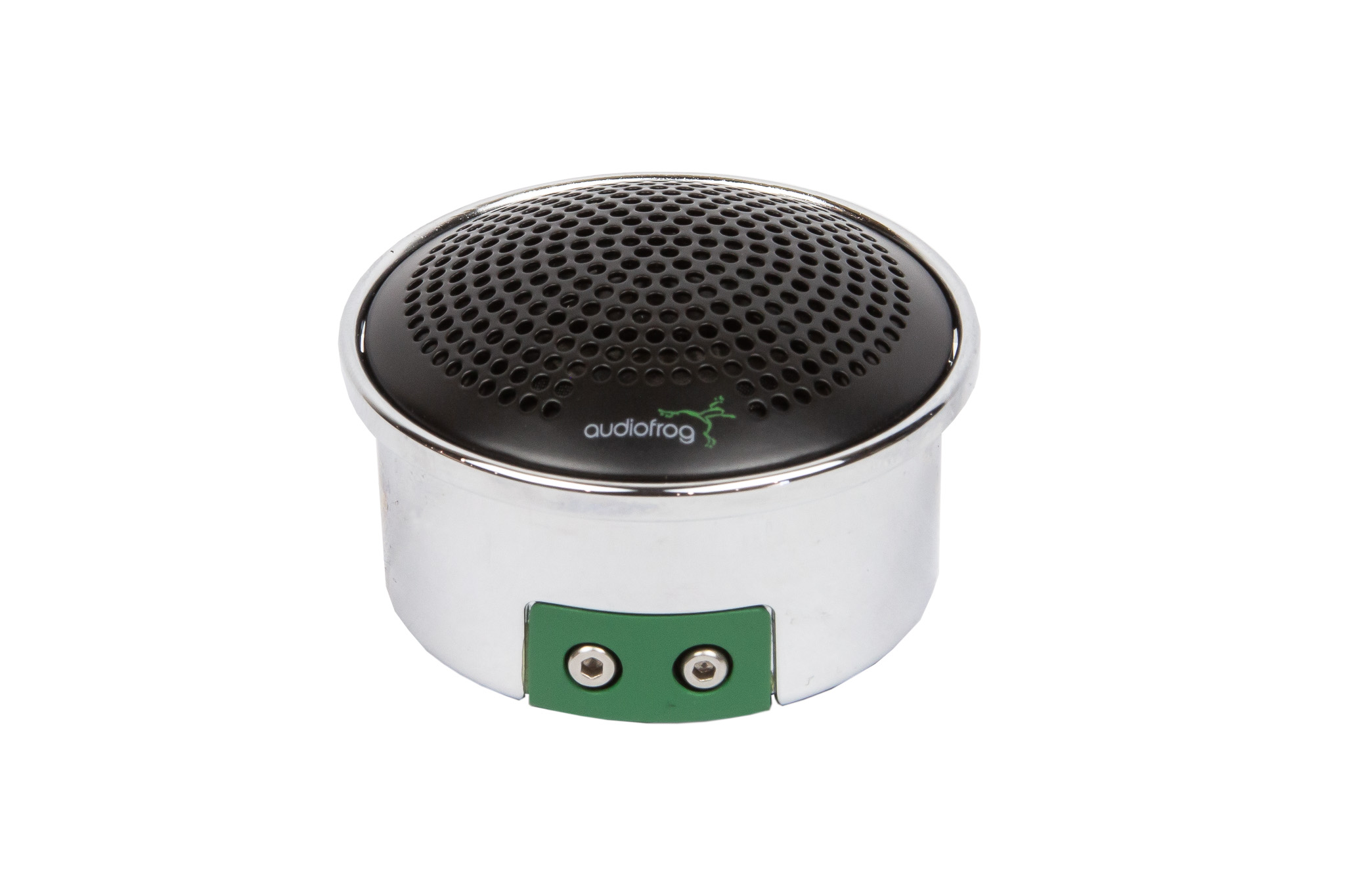

- • 1” (25 mm) Carbon Fiber Diaphragm• 1” (25 mm) Voice Coil• Acoustic Lens• Neodymium Motor• Chrome-Plated Cast Zinc Housing• Copper Inductance- and Distortion-Reducing Pole Piece Cap• Screw Terminals• All-Metal Flush and Behind-the-Panel Mounting Kits Included• Hex Screws and Tools Included• Removable and Paintable Grille• Rub-On Logos Included for Custom Installation
Specifications
• Nominal Impedance: 4 Ω
• RMS Power Handling: 100 W (with recommended crossover)
• Peak Power Handling: 300 W (with recommended crossover)
• Frequency Response (-3 dB): 1.5 kHz – 37 kHz
• Sensitivity (2.83V / 1M): 90 dB
• Recommended Amplifier RMS Power Range: 20 W – 100 W
• Recommended High Pass Filter Frequency and Slope: ≥ 2 kHz, 24 dB/oct Linkwitz Riley
Dimensions:

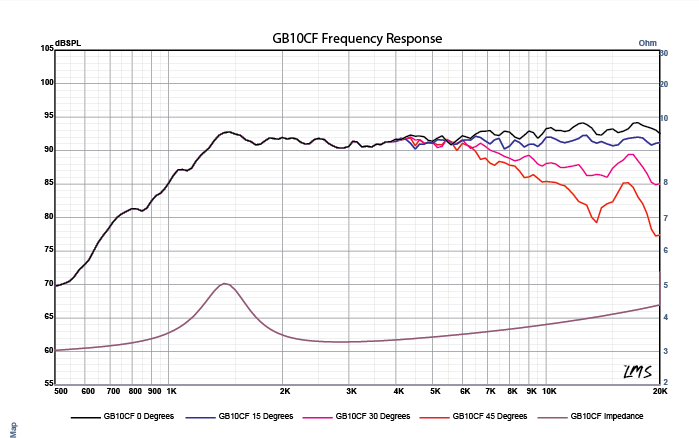

Frequency response:
